Doda Equipment
We strive for engineering excellence in everything we do, so when it comes to selecting our partners and suppliers, we only choose companies that share our commitment to delivering the best. That is why we recommend the use of DODA pumps with our systems.
We enjoy an excellent relationship with DODA. It has been built on years of practical experience and testing; and it combines our vast farm contracting knowledge with DODA’s technical prowess in pump development.
As a result of this extensive Research & Development, the DODA pumps offered by SlurryKat provide a totally unique specification and performance.
Diesel Engine Pumping Station
As an alternative to PTO Doda chopper pumps we offer a fully enclosed silent running pump set for remote control umbilical slurry pumping operations.
- 175 KW (238 HP) @ 2100RPM FPT or John Deere engines
- Liquid cooling
- DODA AFI 35 IV chopper pump with oil cooling system
- Performance - Up to 300m3 per hour @ 16 bar pressure
- Delivery options with return to tank bypass system
- Automatic headland management system (same as on PTO pumps)
- Flowmetering on delivery
- Remote min Cab control with Phone or Tablet
- Optional Radio control available
- 1000L fuel tank
- Compact footprint of unit (3 metres long)
- Cloud platform for remote support & monitoring
- Vacuum priming system
The four different chopper pump models available in the SlurryKat range have the following characteristics:
Good all-round performance, high pressure 14 bar up to 150m3/hr
Higher flow rate, 12 bar up to 240 m3/hr
High pressure, high flow rates, stone/debris trap, oil cooling system 18 bar up to 350m3/hr
High flow rates, 10 bar up to 660m3/hr
All New 2020 AFI HD35
- New shaft resists damage from foreign objects
- New shaft design is now 60% larger & stronger
- AFI blade is no longer screwed onto the shaft with threads
- AFI Blade mounted on a splined shaft and retained with a high tensile nut
- Can be easily removed for service
- 50% thicker pump body casting giving much longer wear life
- All wear parts optionally available in special wear resistant Dura-Line steel

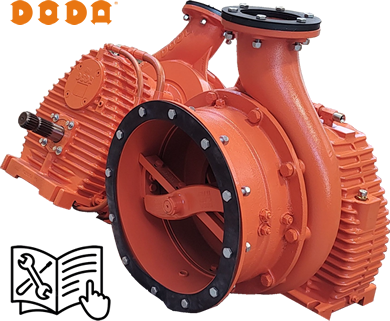

DODA AFI Mechanical Seal Replacement Guide
Delighted with the new Doda pump with 5” pipe work. Output is increased over 3000 gallons/hr compared to old pipe work and also tractor isn’t labouring at low revs and using less fuel.
